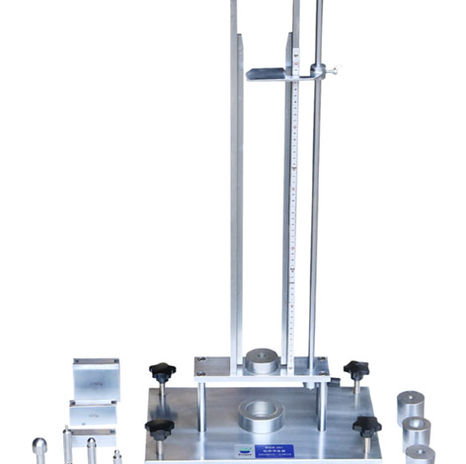

Biuged BGD 301 DuPont Impact Tester

The Biuged BGD 301 DuPont Impact Tester is a robust, laboratory‑grade instrument designed to evaluate the impact resistance of coatings applied to metal, plastic, or other rigid substrates. By simulating real‑world deformation forces, the BGD 301 helps manufacturers and laboratories assess coating durability, adhesion strength, and resistance to cracking or deformation. It is widely used in paint R&D, industrial coating QC, and materials testing environments.

Key Features

• Accurate Impact‑Resistance Testing

The tester evaluates coating endurance by dropping a selected weight from a controlled height onto an indenter that contacts the coated specimen. This method reveals cracking, deformation, or adhesion failure after impact.

• Multiple Indenters & Weights Included

Equipped with five indenter diameters (1/2", 1/4", 1/8", 1/16", 3/16") and three weights (300 g, 500 g, 1000 g), allowing flexible test configurations for different coating types and thicknesses.

• Adjustable Impact Height

Impact height ranges from 50 mm to 500 mm, adjustable in 50 mm increments, enabling precise control over test severity.

• Standards‑Compliant Testing

Fully compatible with major international impact‑resistance standards:

• ASTM D2794

• JIS K5400

• CNS 10756

ensuring reliable, globally recognized test results.

• Durable, Stable Construction

Built with a sturdy manual frame for repeatable, vibration‑free operation. The complete unit weighs approximately 24 kg, ensuring stability during testing.

Ideal Applications

• Paint and coating R&D

• Industrial coating quality control

• Adhesion and deformation testing

• Automotive, aerospace, and metal‑finishing industries

• Comparative testing of coating formulations

Why Choose the Biuged BGD 301?

The BGD 301 stands out as a reliable, standards‑compliant impact tester that delivers consistent, repeatable results. Its wide range of indenters, adjustable impact height, and rugged construction make it a trusted tool for laboratories and manufacturers who need accurate evaluation of coating durability. Whether you're developing new coatings or verifying production quality, the BGD 301 provides the precision and confidence required for professional testing.
